Zhejiang Xuanyuntong tub yees Technology Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm ntswj hom tub yees compressor nyob rau hauv Tuam Tshoj, kuj txhawb kev cai kev pab cuam. Txais tos rau kev lag luam wholesale zoo ntswj hom tub yees compressor ntawm tus nqi sib tw los ntawm peb lub hoobkas.

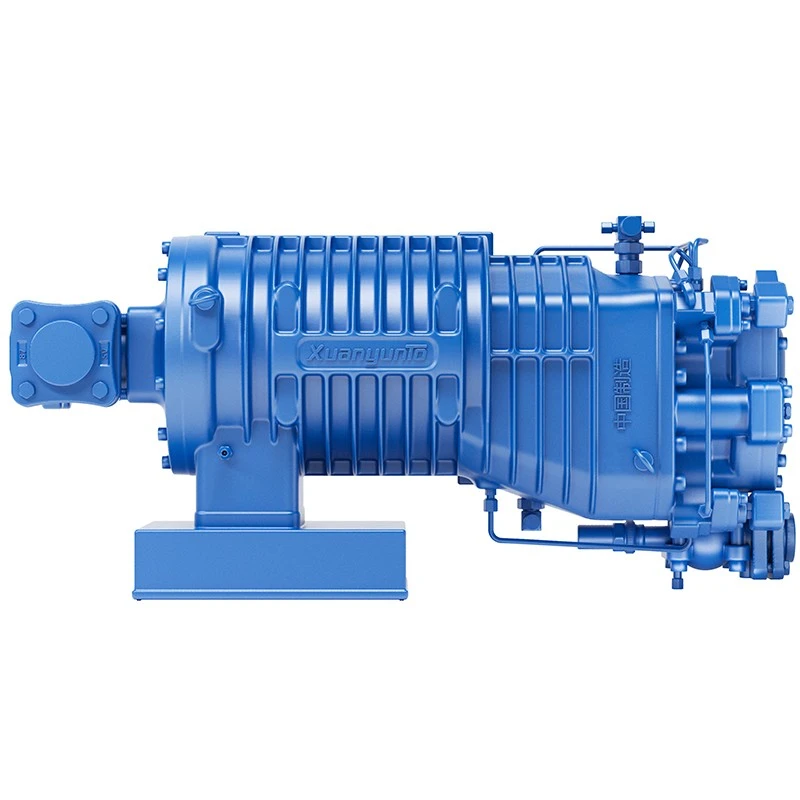

Cov ntsia hlau tub yees compressor kuv muaj cov qauv tsim nyog thiab tsim nyog. Cov tub ntxhais rotors tau ua tiav los ntawm precision CNC machining, nrog cov khoom sib xws thiab meshing qhov khoob thiab zoo heev airtightness, uas zoo txo cov to hauv sab hauv thiab zoo heev txhim kho volumetric efficiency thiab tub yees zog efficiency. Lub peev xwm ua kom txias txias yog qhov dav, uas tuaj yeem hloov kho raws li qhov ua haujlwm tiag tiag, hloov mus rau qhov sib txawv ntawm qhov kub thiab txias xws li qhov kub thiab txias thiab qhov sib txawv ntawm kev ua haujlwm xav tau. Thaum lub sijhawm ua haujlwm, qhov kev vibration tsis muaj zog thiab lub suab nrov qis, tsim kom muaj kev ua haujlwm ntsiag to.
Cov ntsia hlau tub yees compressor kuv muaj cov kua ua kua muaj zog, muaj qee qhov me me ntawm qhov chaw tsis muaj zog thiab kev ruaj ntseg zoo, uas tuaj yeem paub ntev - teeb meem tsis tu ncua - ua haujlwm pub dawb nrog tus nqi qis. Kev tu txhua hnub, kev tshuaj xyuas thiab kev saib xyuas yog qhov yooj yim, uas txo qis kev ua haujlwm tom qab thiab kho cov nqi. Nyob rau tib lub sijhawm, nws yog sib xws nrog ntau yam ntawm ib puag ncig tus phooj ywg tub yees, ua raws li cov kev xav tau ntawm ntsuab thiab qis - carbon kev loj hlob, nrog rau lub zog zoo kawg nkaus - txuag cov nyhuv thiab txo cov kev siv hluav taws xob zoo.
Screw refrigeration compressor kuv yog dav siv nyob rau hauv loj thiab nruab nrab- qhov chaw txias txias, khoom noj khoom haus ceev ceev thiab txias saw warehousing, industrial txheej txheem tub yees, hauv nruab nrab cua txias systems, tshuaj tsis tshua muaj -kub tshuaj, biopharmaceutical tub yees thiab lwm yam teb. Nrog kev ua haujlwm ruaj khov, kev ua haujlwm yooj yim thiab kev ua haujlwm zoo tshaj plaws, nws tau dhau los ua cov khoom siv dav dav thiab kev ua haujlwm zoo hauv kev lag luam tub yees niaj hnub los ntawm kev tsim txiaj ntawm kev paub tab thiab kev ua haujlwm txhim khu kev qha.
|
Qauv |
Tsawg kub thov qauv |
Qhov nruab nrab kub daim ntawv thov qauv |
||
|
XYT-HSN 7471-75(250.0) |
XYT-HSN 8571-100(320.0) |
XYT-HSK 7471-90(250.0) |
XYT-HSK 8571-120(320.0) |
|
|
Cov pa tawm (2900g / min 50HZ) |
250m³/h |
320 m³/h |
250m³/h |
320 m³/h |
|
Cov pa tawm (3500g / min 60HZ) |
302m³/h |
384m³/h |
302 m³/h |
384m³/h |
|
Lub cev muaj zog voltage (lwm cov lus nug) |
380..415V D / DD / 3 / 50HZ |
380..415V D / DD / 3 / 50HZ |
380..415V D / DD / 3 / 50HZ |
380..415V D / DD / 3 / 50HZ |
|
Kev ua haujlwm siab tshaj plaws tam sim no |
144.0A |
202.0A |
162.0A |
202.0A |
|
Pib tam sim no (motor stalling) |
350.0 AD / 585.0A DD |
603.0 AD / 923.0A DD |
423.0 AD / 686.0A DD |
603.0 AD / 923.0A DD |
|
hnyav |
326kg ua |
3 73kg |
336kg ua |
3 78kg |
|
Qhov siab tshaj plaws (LP / HP) |
19/28 dr hab |
19/28 dr hab |
19/28 dr hab |
19/28 dr hab |
|
Kev sib txuas ntawm lub raj xa dej |
76 hli -3 1/8' |
76 hli -3 1/8' |
76 hli -3 1/8' |
76 hli -3 1/8' |
|
Exhaust pipeline txuas |
54 hli -2 1/8' |
54 hli -2 1/8' |
54 hli -2 1/8' |
54 hli -2 1/8' |
|
ECO connector/shut-off valve |
22 hli-7/8 '(Option) |
22 hli-7/8 '(Option) |
22 hli-7/8 '(Option) |
22 hli-7/8 '(Option) |
|
Txau sib koom ua ke |
-- |
-- |
||
|
R22 lubricating roj qauv |
B150SH, B100 (Kev xaiv) |
B150SH, B100 (Kev xaiv) |
B150SH, B100 (Kev xaiv) |
B150SH, B100 (Kev xaiv) |
|
R404A / / R507A lubricating roj qauv |
BSE170 (Kev xaiv) |
BSE170 (Kev xaiv) |
BSE170 (Kev xaiv) |
BSE170 (Kev xaiv) |
|
Roj ntws tswj |
SE -B2 (Standard) |
SE -B2 (Standard) |
SE -B2 (Standard) |
SE -B2 (Standard) |
|
Exhaust kub tiv thaiv |
Txuj |
Txuj |
Txuj |
Txuj |
|
Uninstall thiab pib |
Txuj |
Txuj |
Txuj |
Txuj |
|
kev cai zog |
100-75-50% (Standard) |
100-75-50% (Standard) |
100-75-50% (Standard) |
100-75-50% (Standard) |
|
Lub cev muaj zog tiv thaiv module |
SE -E1 (Standard) |
SE -E1 (Standard) |
SE -E1 (Standard) |
SE -E1 (Standard) |
|
Kev tiv thaiv qib |
IP54 |
IP54 |
IP54 |
IP54 |
